Sv: Batterivarning diod lyser trots laddat batteri
Aha
Kan det vara ngt sådant här som behövs...

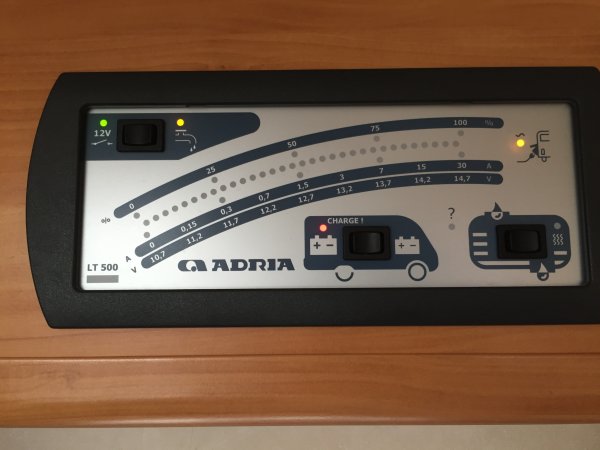

Om det är en Schaudt LT500 panel (t ex i en Adriatik):
5.8 Displaying and setting the nominal battery capacity of the living area battery
The nominal capacity is set to 90 Ah at the factory. The nominal capacity can
be set (e.g. in the event of retrofitting a battery) within the range of 60 Ah to 220 Ah.
Display principle The number of illuminated indicator LEDs indicates the set nominal capacity.
60 Ah: No indicator LED lights up
220 Ah: All indicator LEDs light up
In addition to the minimum capacity of 60 Ah, 2 indicator LEDs light up for every additional 10 Ah.
Example: If 12 indicator LEDs light up, that means:
60 Ah + 6 x 10 Ah = 120 Ah battery capacity
Displaying and setting the nominal capacity
Press the left side of the battery switch and the right side of the tank level
switch for more than 5 seconds.
When the "%" symbol flashes, let go of both switches.
The illuminated indicator LEDs indicate the set nominal capacity for the living
area battery.
If the nominal capacity is not to be changed:
Press the battery switch. The display goes out after 20 seconds.
If the nominal capacity is to be changed:
Press the right side of the tank level switch: The nominal capacity is increased by 10 Ah.
Press the left side of the tank level switch: The nominal capacity is reduced by 10 Ah.
Press the left side of the 12 V main switch: The new value is saved and the setting is completed.
20 seconds after pressing the button for the last time, the control and switch
panels switchers back to its basic condition. If the newly set nominal capacity
has not been confirmed using the 12 V main switch by then, it is not saved.
Observera!!!!
To set the nominal capacity of the living area battery, always enter the
K100 value stated on the battery. If no K100 value is specified, read off the
K20 value and multiply it by 1.125.
